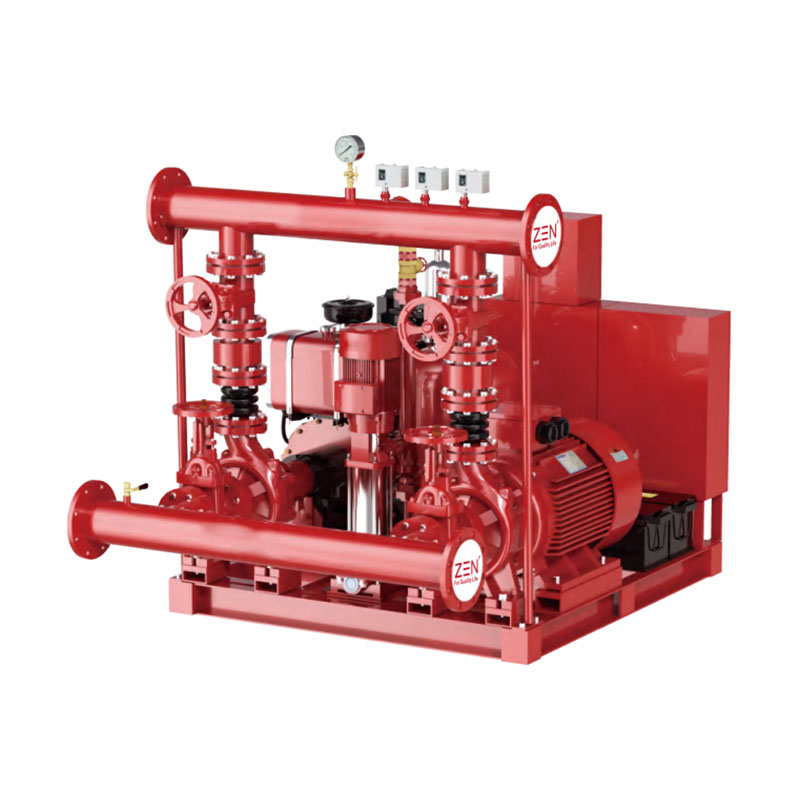

Si një prodhues profesionist, Zen është i përkushtuar t'ju ofrojë Sistem të Shuarjes së Zjarrit ZEDJ me cilësi të lartë. Pompat tona të zjarrit janë krijuar për të qëndruar gjatë gjithë jetës dhe besueshmëria maksimale është gjithmonë prioriteti ynë kryesor.
1. Komponentët janë montuar në një strukturë kornizë çeliku.
2. Каждый контроллер имеет собственную линию измерения давления.
3. Всасывающая линия не должна включать сетчатый фильтр.
4. Kontrolloni valvulën dhe valvulën e mbytjes në linjën e shkarkimit.
5. Certifikimi NFPA 20 nuk lejon thithje negative për pompat e thithjes fundore dhe të mbështjelljes së ndarë.
Высококачественная модель Система пожаротушения ZEDJ предлагается китайским производителем ZEN. Мы производим пожарные насосы в строгом соответствии с международными стандартами, стремясь предоставлять клиентам по всему миру высококачественную продукцию. Свяжитесь с нами в любое время.

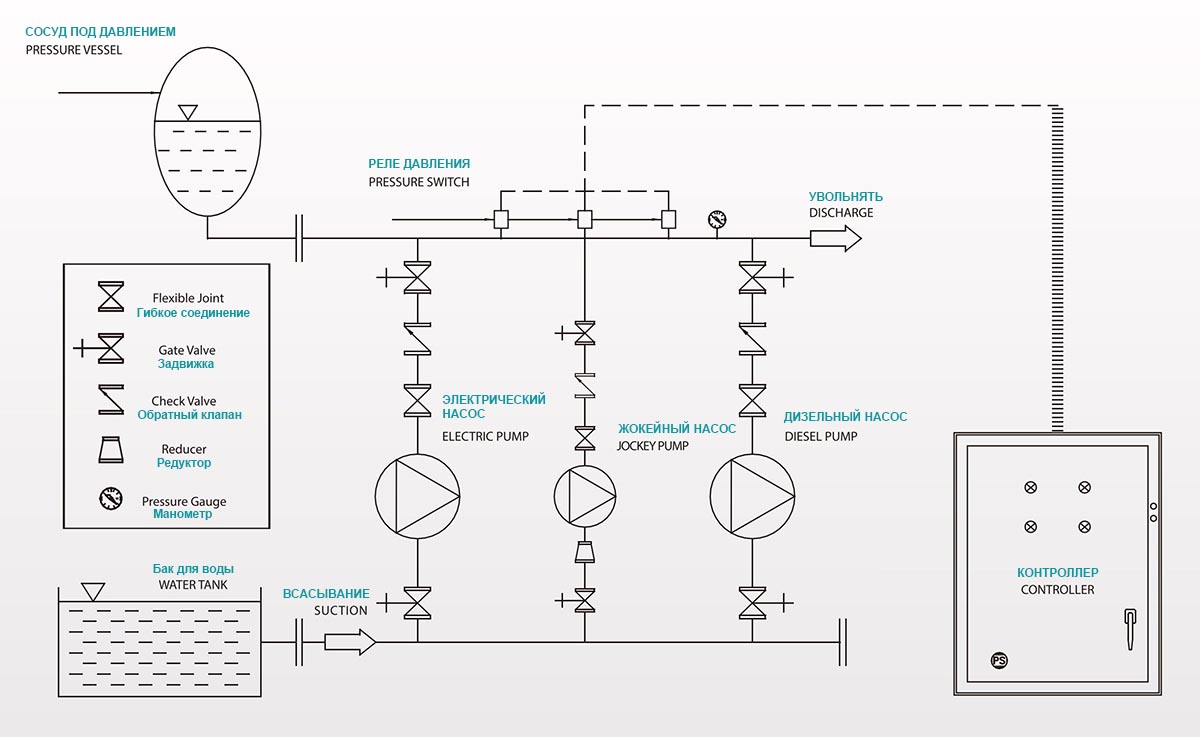

Kur presioni bie nën vlerën e caktuar, ndërprerësi i presionit aktivizon kaloratorin dhe funksionon për 10 minuta derisa presioni i sistemit të arrijë vlerën e caktuar. Nëse presioni vazhdon të bjerë, pompa kryesore fillon së pari. Nëse presioni i sistemit nuk mund të furnizohet dhe presioni vazhdon të bjerë, pompa rezervë aktivizohet.
 |

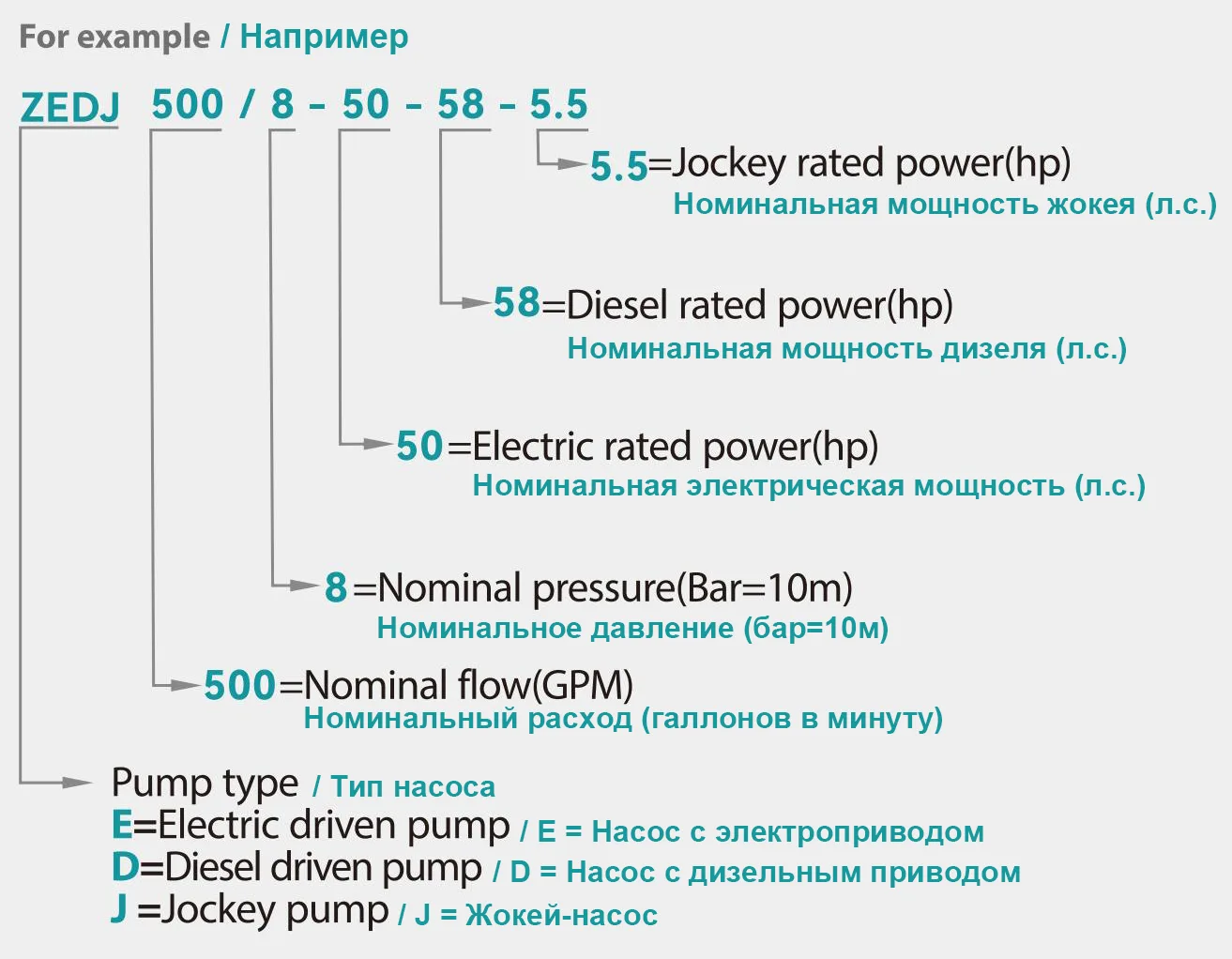

Q | H | Elektrike | Naftë | Жокей | ||
| Opsioni 1 | Opsioni 2 | Opsioni 1 | Opsioni 2 | ||||
| I lidhur ngushtë | Konjuguar i veçantë | Тип муфты | Shtytës plastik | Shtytës SS304 | |||
| GPM | Бар |
 |
 |
 |
 |
 |
|
| ZEDJ 50/6-5.5-8.6-2 | 50 | 6 | ZST 32-250/557.5HP | XAD32-250/557.5HP | SD 32-250/558.6 HP | SVP4-6/2HP | CDL(F) 1-15/1HP |
| ZEDJ 50/7-7.5-10-2 | 50 | 7 | ZST 32-250/75 10HP | XAD32-250/75 10HP | SD 32-250/75 10HP | SVP4-6/2HP | CDL(F) 1-15/1HP |
| ZEDJ 50/8-10-12-3 | 50 | 8 | ZST 32-250/11015HP | XAD32-250/110 15HP | SD 32-250/11012 HP | SVP4-10/3HP | CDL(F) 1-15/1HP |
| ZEDJ 50/9-10-27-3 | 50 | 9 | ZST 32-250/150 20HP | XAD32-250/150 20HP | SD 32-250/150 27 kf | SVP4-10/3HP | CDL(F) 1-17/1.5HP |
| ZEDJ 100/7-10-10-2 | 100 | 6-7 | ZST 32-250/75 10HP | XAD32-250/75 10HP | SD 32-250/75 10HP | SVP4-6/2HP | CDL(F)2-11/1.5HP |
| ZEDJ 100/8-15-27-3 | 100 | 8 | ZST 32-250/150 20HP | XAD32-250/150 20HP | SD 32-250/150 27 kf | SVP4-10/3HP | CDL(F) 2-13/2HP |
| ZEDJ 100/9-17.5-27-3 | 100 | 9 | ZST 40-250/185 25HP | XAD40-250/185 25HP | SD40-250/185 27 HP | SVP4-10/3HP | CDL(F) 2-13/2HP |
| ZEDJ 120/7-10-12-3 | 120 | 7 | ZST 32-250/75D 10HP | XAD32-250/75H 10HP | SD 32-250/75H 12HP | SVP4-10/3HP | CDL(F) 2-13/2HP |
| ZEDJ 150/7-15-12-3 | 150 | 7 | ZST 40-250/110 15HP | XAD40-250/110 15HP | SD 40-250/110 12 kuaj fuqi | SVP4-10/3HP | CDL(F) 4-10/3HP |
| ZEDJ 200/6-20-27-3 | 200 | 6 | ZST 50-250/150 20HP | XAD50-250/150 20HP | SD 50-250/150 27HP | SVP4-10/3HP | CDL(F) 4-10/3HP |
| ZEDJ 200/7-25-27-3 | 200 | 7 | ZST 50-250/185 25HP | XAD50-250/185 25HP | SD 50-250/185 27 kf | SVP4-10/3HP | CDL(F) 4-10/3HP |
| ZEDJ 200/8-30-32-3 | 200 | 8 | ZST 50-250/220 30HP | XAD50-250/220 30HP | SD 50-250/220 32 kuaj fuqi | SVP4-10/3HP | CDL(F) 4-12/3HP |
| ZEDJ 200/9-40-38-4 | 200 | 9 | - | XAD50-250/300 40HP | SD 50-250/300 38 kf | SVP4-12/4HP | CDL(F)4-123/HP |
| ZEDJ 200/10-50-58-4 | 200 | 10 | XAD50-315/37050HP | SD 50-315/370 58 kf | SVP6-8/4HP | CDL(F)4-14/4HP | |
| ZEDJ 250/7-25-27-4 | 250 | 7 | ZST 50-250/18525HP | XAD50-250/185 25HP | SD 50-250/185 27 kf | SVP6-8/4HP | CDL(F) 4-12/3HP |
| ZEDJ 300/6-25-27-4 | 300 | 6 | ZST 50-250/185 25HP | XAD50-250/185 25HP | SD 50-250/185 27 kf | SVP6-8/4HP | CDL(F) 8-6/3HP |
| ZEDJ 300/7-30-32-4 | 300 | 7 | ZST 50-250/220 30HP | XAD50-250/220 30HP | SD 50-250/220 32 kuaj fuqi | SVP6-8/4HP | CDL(F) 8-8/4HP |
| ZEDJ 300/8-40-38-4 | 300 | 8 | - | XAD50-250/300 40HP | SD 50-250/300 38 kf | SVP8-8/4HP | CDL(F) 8-8/4HP |
| ZEDJ 300/10-50-58-5.5 | 300 | 9-10 | - | XAD50-315/370 50HP | SD 50-315/370 58 kf | SVP8-10/5,5 HP | CDL(F) 8-12/5,5 HP |
| ZEDJ 350/7-30-32-4 | 350 | 7 | ZST 50-250/220 30HP | XAD50-250/220 30HP | SD 50-250/220 32 kuaj fuqi | SVP8-8/4HP | CDL(F) 8-8/4HP |
| ZEDJ 400/6-30-32-4 | 400 | 6 | ZST 65-250/220 30HP | XAD65-250/220 30HP | SD 65-250/220 32 kuaj fuqi | SVP8-8/4HP | CDL(F) 8-8/4HP |
| ZEDJ 400/7-40-38-5.5 | 400 | 7 | ZST 65-250/300 40HP | XAD65-250/300 40HP | SD 65-250/300 38 kf | SVP8-10/5,5 HP | CDL(F) 8-8/4HP |
| ZEDJ 400/8-50-58-5.5 | 400 | 8 | ZST 65-250/370 50HP | XAD65-250/370 50HP | SD 65-250/370 58 kf | SVP8-10/5,5 HP | CDL(F) 8-10/5.5HP |
| ZEDJ 400/9-60-61-7.5 | 400 | 9 | ZST 65-315/450 60HP | XAD65-315/450 60HP | SD 65-315/450 61 kuaj fuqi | SVP12-6/7,5 HP | CDL(F) 8-12/5,5 HP |
| ZEDJ 500/7-40-38-5.5 | 500 | 6-7 | ZST 65-250/300 40HP | XAD65-250/300 40HP | SD 65-250/300 38 kf | SVP12-4/5,5 HP | CDL(F) 12-8/7.5HP |
| ZEDJ 500/8-50-58-7.5 | 500 | 8 | ZST 65-250/370 50HP | XAD65-250/370 50HP | SD 65-250/37058HP | SVP12-6/7,5 HP | CDL(F) 12-8/7.5HP |
| ZEDJ 500/9-60-61-7.5 | 500 | 9 | ZST 65-315/450 60HP | XAD65-315/450 60HP | SD 65-315/450 61 kuaj fuqi | SVP12-6/7,5 HP | CDL(F)12-9/7.5HP |
| ZEDJ 500/11-75-75-7.5 | 500 | 10-11 | ZST 65-315/550 75HP | XAD65-315/550 75HP | SD 65-315/550 75HP | SVP12-6/7,5 HP | CDL(F) 12-12/10HP |
| ZEDJ 500/13-100-100-15 | 500 | 12-13 | ZST 65-315/750 100HP | XAD65-315/750 100HP | SD 65-315/750 100 kf | - | CDL(F) 12-14/15HP |
|
|
Q | H | Elektrike | Naftë | Жокей | ||
| Opsioni 1 | Opsioni 2 | Opsioni 1 | Opsioni 2 | ||||
| I lidhur ngushtë | Konjuguar i veçantë | Тип муфты | Shtytës plastik | Shtytës SS304 | |||
| GPM | Бар |
|
|
|
|
|
|
| ZEDJ 500/14-125-125-15 | 500 | 14 | ZST 65-315/900 125HP | XAD65-315/900 125HP | SD 65-315/900 125HP | - | CDL(F) 12-14/15HP |
| ZEDJ 750/7-60-61-10 | 750 | 6-7 | ZST 80-250/450 60HP | XAD80-250/450 60HP | SD 80-250/450 61 kuaj fuqi | - | CDL(F) 16-8/10HP |
| ZEDJ 750/8-75-75-10 | 750 | 8 | ZST 80-250/550 75HP | XAD 80-250/550 75HP | SD80-250/550 75 kf | - | CDL(F) 16-8/10HP |
| ZEDJ 750/9-100-100-10 | 750 | 9 | - | LIMITI 80-250/750 100KF | SD 80-250/750 100HP | - | CDL(F) 16-8/10HP |
| ZEDJ 750/11-100-100-12 | 750 | 10-11 | ZST 80-315/750 100HP | XAD 80-315/750 100HP | SD 80-315/750 100 kf | - | CDL(F)16-10/15HP |
| ZEDJ 50/13-125-125-15 | 750 | 12-13 | ZST 80-315/900 125HP | LIMITI 80-315/900 125KF | SD 80-315/900 125 kuaj fuqi | - | CDL(F) 16-12/15HP |
| ZEDJ 50/14-150-150-15 | 750 | 14 | - | XAD 80-315/1100 150HP | SD 80-315/1100 150 kf | - | CDL(F) 16-14/20HP |
| ZEDJ 1000/8-100-100-10 | 1000 | 8 | ZST 100-250/750 100HP | LIMITI 100-250/750 100KF | SD 100-250/750 100HP | - | CDL(F))20-8/15HP |
| ZEDJ 1000/9-125-125-12 | 1000 | 9 | ZST 100-250/900 125HP | XAD 100-250/900 125HP | SD 100-250/900 125 kuaj fuqi | - | CDL(F) 20-10/15HP |
| ZEDJ 1000/11-150-150-12 | 1000 | 10-11 | ZST 100-315/1100 150 kf | XAD100-315/1100 150HP | SD 100-315/1100 150HP | - | CDL(F) 20-10/15HP |
| ZEDJ 1000/12-180-170-15 | 1000 | 12 | ZST 100-315/1320 180 kf | XAD 100-315/1320 180HP | SD 100-315/1320 170 kf | - | CDL(F) 20-14/20HP |
| ZEDJ 1000/14-220-225-20 | 1000 | 13-14 | ZST 100-315/1600 220HP | XAD 100-315/1600 220HP | SD 100-315/1600 225HP | - | CDL(F) 20-14/20HP |
| ZEDJ 1250/8-150-150-12 | 1250 | 8 | - | XAD 125-250/1100 150HP | SD 125-250/1100 150 kf | - | CDL(F) 32-60/15HP |
| ZEDJ 1250/9-180-170-15 | 1250 | 9 | - | LIMITI 125-315/1320 180KF | SD 125-315/1320 170 kf | - | CDL(F) 32-60/15HP |
| ZEDJ 1250/11-220-225-15 | 1250 | 10-11 | - | LIMITI 125-315/1600 220KF | SD 125-315/1600 225 kf | - | CDL(F) 32-80/20HP |
| ZEDJ 1250/12-250-270-20 | 1250 | 12 | - | LIMITI 125-315/1850 250KF | SD 125-315/1850 270 kf | - | CDL(F) 32-80/20HP |
| ZEDJ 1250/13-270-270-25 | 1250 | 13 | - | XAD 125-315/2000 270 kf | SD 125-315/2000 270 kf | - | CDL(F) 32-100/25HP |
| ZEDJ 1500/8-180-170-15 | 1500 | 8 | - | LIMITI 125-250H/1320 180HP | SD 125-250H/1320 170HP | - | CDL(F))32-80/20HP |
| ZEDJ 1500/9-180-170-20 | 1500 | 9 | - | LIMITI 125-315/1320 180KF | SD 125-315/1320 170 kf | - | CDL(F) 32-80/20HP |
| ZEDJ 1500/10-220-225-20 | 1500 | 10 | - | LIMITI 125-315/1600 220KF | SD 125-315/1600 225 kf | - | CDL(F) 32-80/20HP |
| ZEDJ 1500/12-250-270-25 | 1500 | 11-12 | - | LIMITI 125-315/1850 250KF | SD 125-315/1850 270 kf | - | CDL(F))32-100/25HP |
| ZEDJ 1500/13-270-270-25 | 1500 | 13 | - | XAD125-315/2000 270HP | SD 125-315/2000 270 kf | - | CDL(F) 32-100/25HP |
| ZEDJ 2000/8-220-225-25 | 2000 | 8 | - | LIMITI 150-250/1600 220KF | SD 150-250/1600 225 kf | - | CDL(F) 45-50/25HP |
| ZEDJ 2000/9-270-270-25 | 2000 | 9 | - | LIMITI 150-250/2000 270KF | SD 150-250/2000 270 kf | - | CDL(F) 45-50/25HP |
| ZEDJ 2000/10-340-340-30 | 2000 | 10 | - | LIMITI 150-315/2500 340KF | SD 150-315/2500 340 kf | - | CDL(F)45-60/30HP |
| ZEDJ 2000/13-430-410-40 | 2000 | 11-13 | - | XAD 150-315/3150 430HP | SD 150-315/3150 410 kf | - | CDL(F)45-70/40HP |
| ZEDJ 2500/8-220-225-30 | 2500 | 8 | - | LIMITI 150-250/1600 220KF | SD 150-250/1600 225 kf | - | CDL(F)64-40/30HP |
| ZEDJ 2500/9-270-270-40 | 2500 | 9 | - | LIMITI 150-250/2000 270KF | SD 150-250/2000 270 kf | - | CDL(F) 64-50/40HP |
| ZEDJ 2500/10-340-340-40 | 2500 | 10 | - | XAD150-315/2500 340HP | SD 150-315/2500 340 kf | - | CDL(F) 64-50/40HP |
| ZEDJ 2500/12-430-410-40 | 2500 | 11-12 | - | XAD150-315/3150 430HP | SD 150-315/3150 410 kf | - | CDL(F)64-60-2/40HP |

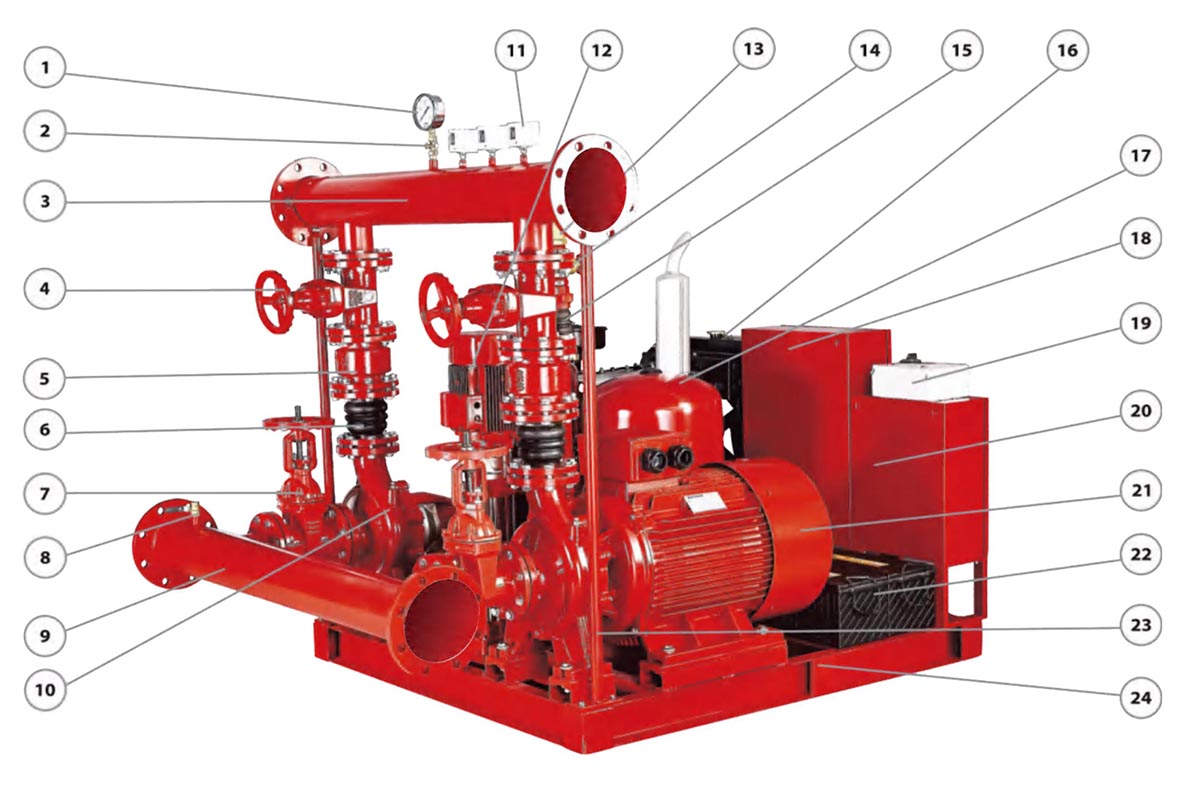

| № | Përshkrimi | Материал |
| 1 | Matës presioni | 0-16 бар |
| 2 | Valvul sigurie | Tunxh |
| 3 | Напорный трубопровод | Çeliku i karbonit |
| 4 | Задвижка | Hekuri i lakueshëm |
| 5 | Valvula e kontrollit | Hekuri i lakueshëm |
| 6 | Гибкое соединение | Gome |
| 7 | OS&Y клапан | Hekuri i lakueshëm |
| 8 | Valvul sigurie | Tunxh |
| 9 | Linja e thithjes | Çeliku i karbonit |
| 10 | Pompë nafte | Furnizimi me energji rezervë |
| 11 | Реле давления | 0-16 бар |
| 12 | Jockey-pompë | Furnizimi me energji rezervë |
| 13 | Жокей-обратный клапан | Tunxh |
| 14 | Valvula mbyllëse e kalorësve | Tunxh |
| 15 | Гибкое соединение | Gome |
| 16 | Дизельный двигатель | Внутреннего сгорания |
| 17 | Rezervuari i presionit | Membrana prej gize / EPDM |
| 18 | Электрический контроллер | Прямой пуск/Звезда-треугольник |
| 19 | Контроллер Jockey | Прямой пуск |
| 20 | Дизельный контроллер | Прямой пуск |
| 21 | Pompë elektrike | Burimi kryesor |
| 22 | Аккумуляторы | Primar/Rezervë |
| 23 | Shufra mbështetëse | Gize |
| 24 | Основание | Gize |
| Расход насоса | Diametrat minimale të tubave (nominale) | ||
| GPM | m³/h | Thithja | Largoje |
| 25 | 6 | 1"-DN25 | 1"-DN25 |
| 50 | 11 | 11/2"-Dn40 | 11/4"-DN32 |
| 100 | 23 | 2"-DN50 | 2"-DN50 |
| 150 | 34 | 21/2"-DN65 | 21/2"-DN65 |
| 200 | 45 | 3"-DN80 | 3"-DN80 |
| 250 | 57 | 4"-DN100 | 3"-DN80 |
| 300 | 68 | 4"-DN100 | 4"-DN100 |
| 400 | 91 | 4"-DN100 | 4"-DN100 |
| 450 | 102 | 5"-DN125 | 5"-DN125 |
| 500 | 114 | 5"-DN125 | 5"-DN125 |
| Расход насоса | Diametrat minimale të tubave (nominale) | ||
| GPM | m³/h | Thithja | Largoje |
| 750 | 170 | 6"-DN150 | 6"-DN150 |
| 1000 | 227 | 8"-DN200 | 6"-DN150 |
| 1250 | 284 | 8"-DN200 | 8"-DN200 |
| 1500 | 341 | 8"-DN200 | 8"-DN200 |
| 2000 | 455 | 10"-DN250 | 10"-DN250 |
| 2500 | 568 | 10"-DN250 | 10"-DN250 |
| 3000 | 682 | 12"-DN300 | 12"-DN300 |
| 3500 | 795 | 12"-DN300 | 12"-DN300 |
| 4000 | 909 | 14"-DN350 | 12"-DN300 |
| 4500 | 1023 | 16"-DN400 | 14"-DN350 |
| 5000 | 1136 | 16"-DN400 | 14"-DN350 |
